Dual Fused Screw Mount IEC 60320 C14 Inlet Filter with DPST Switch, and 0.250″ FASTON Terminals, 115VAC/250VAC, 1A

*Custom configurations available

Buy Product

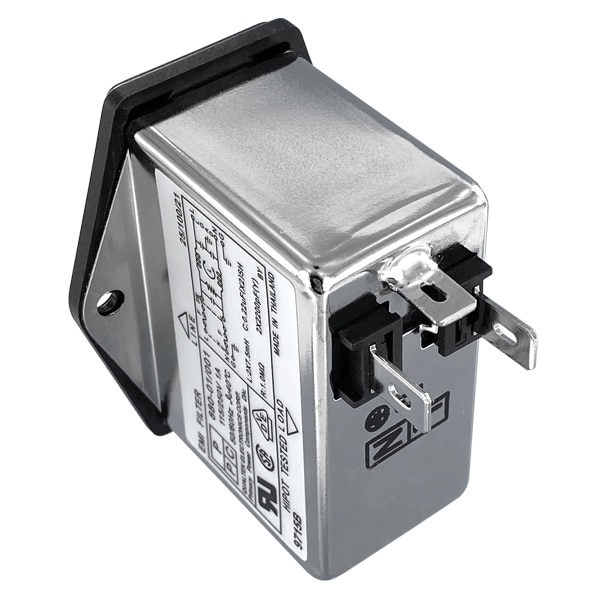

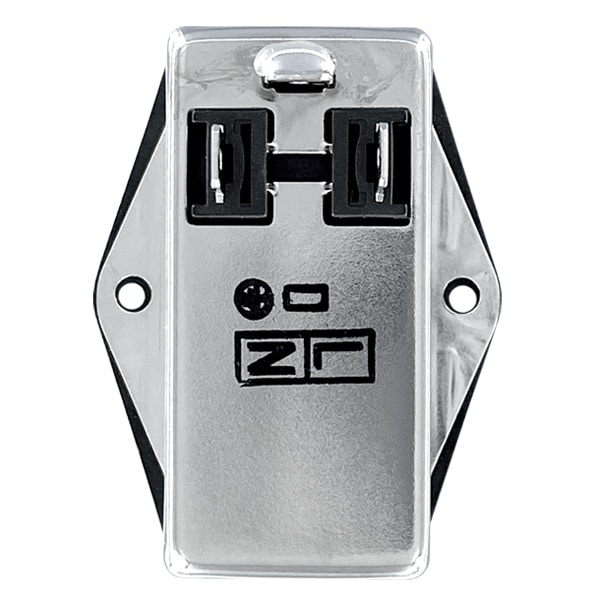

880 Series Dual Fused Multi-Function Screw Mount IEC 60320 C14 Inlet Filter with DPST Switch

A multi-function power entry module filter that incorporates an IEC connector, double pole power switch, and optional single or dual fuse holder (5 x 20mm) offering space savings

Voltage Rating: 115/250VAC
Current Rating @115VAC – 1A RMS MAX
Current Rating @250VAC – 1A RMS MAX
Approvals: UL, CSA, VDE
Operating Temperature: -25°C to +85°C
Fuse Holder: Dual Fuse holder
Recommended Fuse Size: 5x20mm (Fuses not included)
Dual Pole Single Throw Switch

Additional information



Frequency (Hz)

Current (A)

Leakage Max (115VAC, 60Hz) mA

Leakage Max (250VAC, 50Hz) mA

Hipot Rating (L-G) (VDC)

Hipot Rating (L-L) (VDC)

Min Operating Temp (°C)

Max Operating Temp (°C)

Mounting Style

Input Type

Output Type

Dimensions (in)

Fuse Holder

On/Off Power Switch

Voltage Selector


powered by Advanced iFrame. Get the Pro version on CodeCanyon.

Print Certificates

February 21, 2024

Certificate of RoHS Compliance

Qualtek Electronics certifies the following part number 880-01/001 is RoHS Compliant 2011/65/EU Ammended to 2015/863/EU

Certificate of REACH Compliance

We, Qualtek Electronics Corporation, declare that the following part number 880-01/001 does not contain any SVHC substances listed in ECHA’s website: http://echa.europa.eu/chem_data/authorisation_process/candidate_list_table_en.asp of June 2023 in concentrations greater than 0.1% (w/w), and does not contain any substances as described in Annex XVII.


Qualtek Electronics Corporation products do not contain any chemicals considered PoP, Persistent Organic Pollutants, Directive (EU) 2019/1021.

EU Biocides

Qualtek Electronics Corporation certifies that bicoides are not used in products or packaging materials and meet the requirements set by the Biocidal Regulation (BPR) EU 528/2012.

California Proposition 65 Information Can be found at:

Prop 65 Statement

Qualtek Electronics • 7610 Jenther Drive • Mentor, OH 44060 USA
