862-06/003

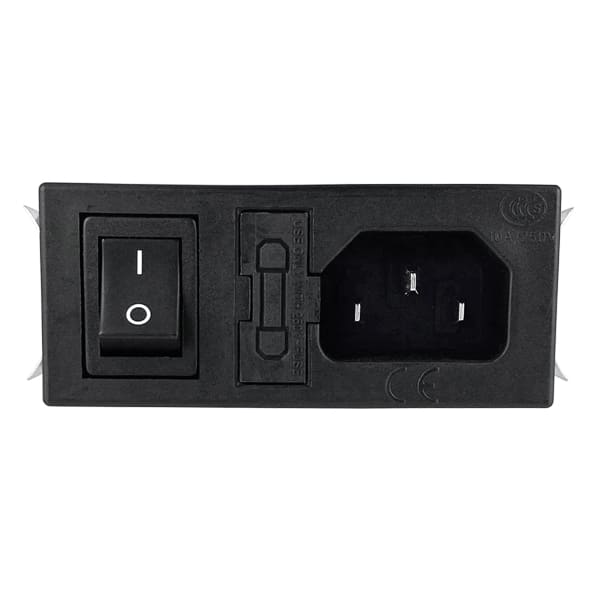

Single Fused Snap-in IEC 60320 C14 Inlet Filter with DPST Switch and 0.250″ FASTON Terminals, 115VAC/250VAC, 6A

*Custom configurations available

Buy Product

Description

862 Series Fused Multi-Function Snap-in IEC 60320 C14 Inlet Filter with DPST Switch

A multi-function power entry module filter that incorporates an IEC connector, a single fuse holder (5 x 20mm) with optional on/off switch, and voltage selector switch

Voltage Rating: 115/250VAC

Current Rating @115VAC – 6A RMS MAX
Current Rating @250VAC – 4A RMS MAX

Approvals: UL, CSA, VDE

Operating Temperature: -25°C to +100°C

Fuse Holder: Single Fuse holder
Recommended Fuse Size: 5x20mm (Fuses not included)

Dual Pole Single Throw Switch

Additional information

Series

Voltage

Frequency (Hz)

Current (A)

Leakage Max (115VAC, 60Hz) mA

Leakage Max (250VAC, 50Hz) mA

Hipot Rating (L-G) (VDC)

Hipot Rating (L-L) (VDC)

Min Operating Temp (°C)

Max Operating Temp (°C)

Mounting Style

Input Type

Output Type

Dimensions (in)

Fuse Holder

On/Off Power Switch

Voltage Selector

Category

powered by Advanced iFrame free. Get the Pro version on CodeCanyon.

Print Certificates

November 30, 2021

Certificate of RoHS Compliance

Qualtek Electronics certifies the following part number 862-06/003 is RoHS Compliant 2011/65/EU Ammended to 2015/863/EU

Certificate of REACH Compliance

We, Qualtek Electronics Corporation, declare that the following part number 862-06/003 does not contain any SVHC substances listed in ECHA’s website: http://echa.europa.eu/chem_data/authorisation_process/candidate_list_table_en.asp of July 2021 in concentrations greater than 0.1% (w/w), and does not contain any substances as described in Annex XVII.

California Proposition 65 Information Can be found at:

Prop 65 Statement
