QDR-1/2-01-SS30M

2:1 Diesel Resistant Elastomeric Heat Shrink Tubing

*Custom configurations available

Buy Product

Description

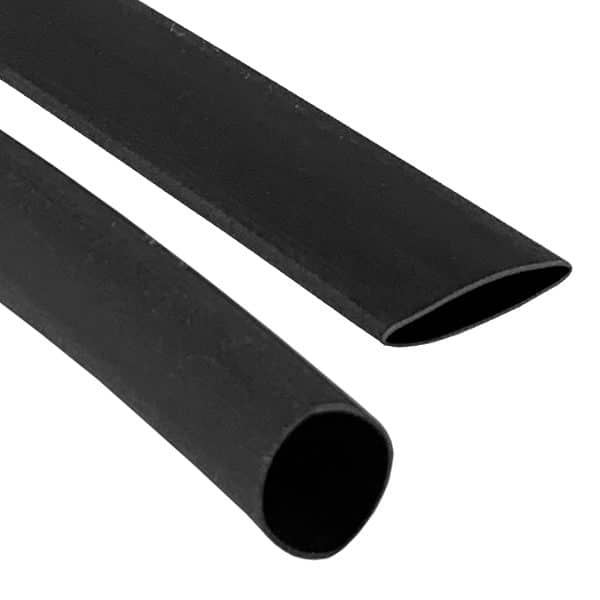

Diesel Resistant Elastomeric Heat Shrinkable Tubing

2:1 Shrink Ratio

Features/Applications
QDR is made from modified radiation cross-linked elastomers and has superior diesel, chemical and abrasion resistant properties. The special formulation makes the tubing high temperature fluid resistant and long term heat resistant. It can provide effective protection to cable terminations, splices and joints in military
vehicles.

Operating temperature: -75°C to +150°C
Full recovery temperature: 175°C
Meets: SAE-AMS-DTL-23053/16
Standard Color: Black, white
RoHS Compliant





Additional information

Series

Diameter

Type

As Supplied ID (min)

Recovered ID (max)

Recovered Wall Thickness

Color

Min Operating Temperature (°C)

Max Operating Temperature (°C)

Military Specification

Length

Shrink Ratio

Material

powered by Advanced iFrame. Get the Pro version on CodeCanyon.

Print Certificates

March 18, 2024

Certificate of RoHS Compliance

Qualtek Electronics certifies the following part number QDR-1/2-01-SS30M is RoHS Compliant 2011/65/EU Ammended to 2015/863/EU

Certificate of REACH Compliance

We, Qualtek Electronics Corporation, declare that the following part number QDR-1/2-01-SS30M does not contain any SVHC substances listed in ECHA’s website: http://echa.europa.eu/chem_data/authorisation_process/candidate_list_table_en.asp of January 2024 in concentrations greater than 0.1% (w/w), and does not contain any substances as described in Annex XVII.

EU PoP

Qualtek Electronics Corporation products do not contain any chemicals considered PoP, Persistent Organic Pollutants, Directive (EU) 2019/1021.

EU Biocides

Qualtek Electronics Corporation certifies that bicoides are not used in products or packaging materials and meet the requirements set by the Biocidal Regulation (BPR) EU 528/2012.

California Proposition 65 Information Can be found at:

Prop 65 Statement

Qualtek Electronics • 7610 Jenther Drive • Mentor, OH 44060 USA
