Q5-3X-3/4-01-SS25M

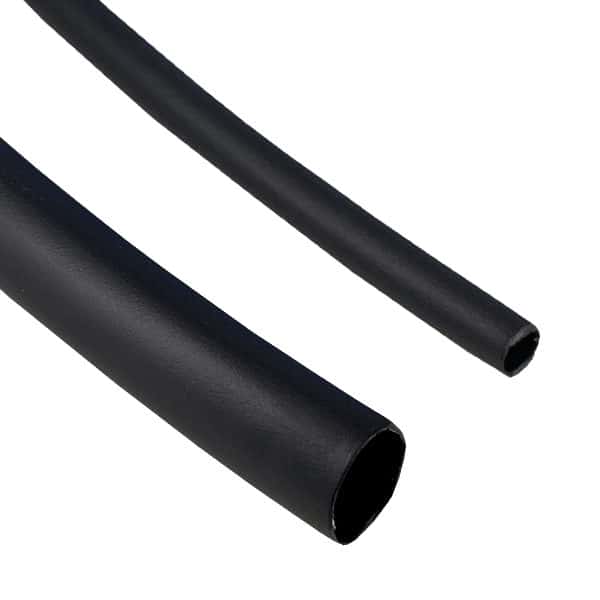

3:1 Dual Wall, Adhesive Lined Heat Shrink Tubing
*Custom configurations available
- Description
- Additional information
- DOCUMENTATION
- Stock Check
- Product Compliance
Description
Dual Wall, Adhesive Lined, Flexible Polyolefin Tubing
3:1 Shrink Ratio
Features/Applications
Heat shrinkable dual wall adhesive lined tubing is manufactured by co-extrusion of polyolefin and hot-melt adhesive. It is designed to provide both insulation and sealing for protection against water and moisture of auto wires, shipping cables, metal tubes and bundled wires.
Operating temperature: -55°C to +125°C
Minimum shrink temperature: 80°C
Full recovery temperature: 110°C
Approvals : UL File No. E236137, CSA File No. 242540, 125°C, VW-1, 600V
Meets: Sony-SS-00259, SAE-AMS-DTL-23053/4
Standard color: Black
RoHS Compliant
Additional information
| Series | |
|---|---|
| Diameter | |
| Type | |
| As Supplied ID (min) | |
| Recovered ID (max) | |
| Recovered Wall Thickness | |
| Color | |
| Min Operating Temperature (°C) | |
| Max Operating Temperature (°C) | |
| Military Specification | |
| Length | |
| Shrink Ratio | |
| Material |
November 18, 2025
Certificate of RoHS Compliance
Qualtek Electronics certifies the following part number Q5-3X-3/4-01-SS25M is RoHS Compliant 2011/65/EU Ammended to 2015/863/EU
Certificate of REACH Compliance
We, Qualtek Electronics Corporation, declare that the following part number Q5-3X-3/4-01-SS25M does not contain any SVHC substances listed in ECHA’s website: https://echa.europa.eu/candidate-list-table of June 2025 in concentrations greater than 0.1% (w/w), and does not contain any substances as described in Annex XVII.
EU PoP
Qualtek Electronics Corporation products do not contain any chemicals considered PoP, Persistent Organic Pollutants, Directive (EU) 2019/1021.
EU Biocides
Qualtek Electronics Corporation certifies that bicoides are not used in products or packaging materials and meet the requirements set by the Biocidal Regulation (BPR) EU 528/2012.
We, Qualtek Electronics Corporation, declare that part number Q5-3X-3/4-01-SS25M does not contain any PFAS, PFOA, or PFOS substances.
California Proposition 65 Information Can be found at:
