Q2-Z-QK2-01-6IN-82

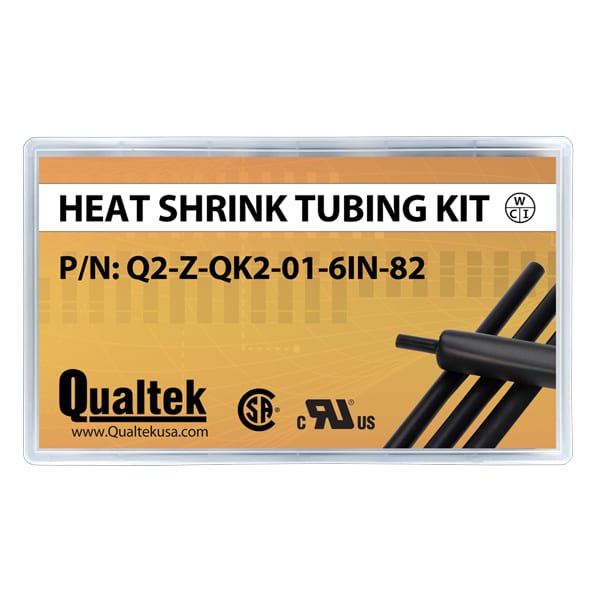

Q2-Z Series Heat Shrink Tubing Kit 2:1 Shrink Ratio, Assorted Sizes, Black Color
*Custom configurations available
- Description
- Additional information
- DOCUMENTATION
- Stock Check
- Product Compliance
Description
Q2-Z Type Tubing Kit, 6 inch Length pieces
2:1 Shrink Ratio, Assorted Sizes
Kit consists of 82 pieces of the following:
| Size | QTY | Color | |
| Inch | mm | ||
| 5/16 | 8.8 | 18 pcs | Black |
| 3/8 | 10.7 | 16 pcs | Black |
| 1/2 | 13.7 | 14 pcs | Black |
| 5/8 | 16.7 | 14 pcs | Black |
| 3/4 | 20.5 | 12 pcs | Black |
| 1 | 25.4 | 8 pcs | Black |
Features/Applications
An environment friendly, flame retardant shrink tubing. Specially designed formulation to meet UL 224 and CSA 22.2 on the basis of no harmful substance such as PBB, PBBE, PBBO and toxic metal compounds. Widely used for insulation, strain relief, harnessing, bundling and color coding of wire with a low shrink temperature. Good Flexibility and superior mechanical strength in such fields as electronics, communication and automobileFeatures/Applications
Operating temperature: -55°C to +125°C
Minimum shrink temperature: 70°C
Full recovery temperature: 100°C
Approvals: UL File No. E236137, CSA File No. 242540, 125°C,VW-1, 600V
Meets: Sony SS-00259,
Material: No PBB’s, PBBO’s, PBBE’s
Cadmium content <5 ppm, Lead content <10 ppm
Standard colors: Black, red, blue, yellow, green, white
Other colors are available upon request.
RoHS Compliant
Additional information
| Series | |
|---|---|
| Diameter | |
| Type | |
| Color | |
| Min Operating Temperature (°C) | |
| Max Operating Temperature (°C) | |
| Length | |
| Shrink Ratio | |
| Material |
September 16, 2026
Certificate of RoHS Compliance
Qualtek Electronics certifies the following part number Q2-Z-QK2-01-6IN-82 is RoHS Compliant 2011/65/EU Ammended to 2025/2364
We, Qualtek Electronics Corporation, declare that the following part number Q2-Z-QK2-01-6IN-82 does contain one or more Substances of Very High Concern (SVHC) listed on ECHA’s Candidate List as of February 2026.
| Substance Name or CAS Number | Concentration |
|---|---|
| DBDPE | 14.5-15% |
This declaration is based on information available to Qualtek Electronics Corporation and the ECHA Candidate List date stated above. The part is also declared not to contain substances restricted under REACH Annex XVII, except where specifically identified in the applicable product documentation.
EU PoP
Qualtek Electronics Corporation products do not contain any chemicals considered PoP, Persistent Organic Pollutants, Directive (EU) 2019/1021.
EU Biocides
Qualtek Electronics Corporation certifies that bicoides are not used in products or packaging materials and meet the requirements set by the Biocidal Regulation (BPR) EU 528/2012.
We, Qualtek Electronics Corporation, declare that part number Q2-Z-QK2-01-6IN-82 does not contain any PFAS, PFOA, or PFOS substances.
California Proposition 65 Information Can be found at:
