Q2-F-QK2-01-6IN-82

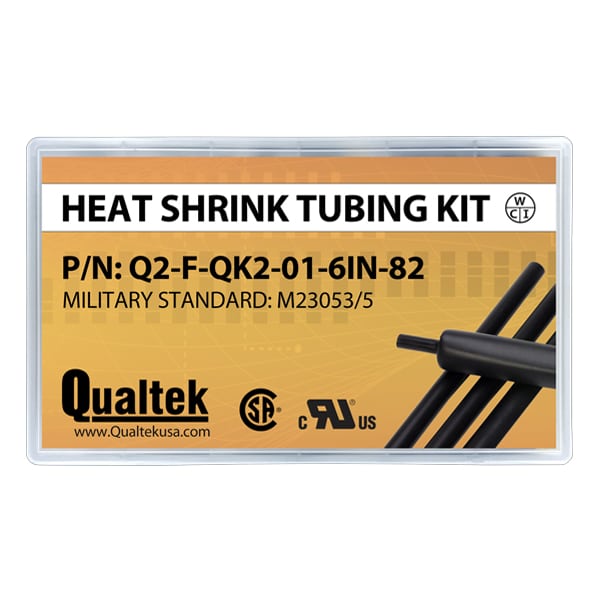

Q2-F Series Heat Shrink Tubing Kit 2:1 Shrink Ratio, Assorted Sizes, Black Color

*Custom configurations available

Buy Product

Description

Q2-F Type Tubing Kit, 6 inch Length pieces
Assorted Sizes

Kit consists of 82 pieces of the following:

Size QTY Color
Inch mm
5/16 8.8 18 pcs Black
3/8 10.7 16 pcs Black
1/2 13.7 14 pcs Black
5/8 16.7 14 pcs Black
3/4 20.5 12 pcs Black
1 25.4 8 pcs Black



Features/Applications
Provides both commercial and military applications electrical insulation and protects in-line components, disconnect terminals and splices with its high strength and excellent resilience. Bundles wires for very flexible light-duty harnesses. Identifies or color-codes wires, cables, terminals and components.

Operating temperature: -55°C to +135°C
Minimum shrink temperature: 70°C
Full recovery temperature: 100°C
Approvals : File No. E236137, File No. 242540, 125°C, VW-1, 600V
Meets: SAE-AMS-DTL-23053/5 Class 1 & 3, Sony-SS-00259
Material: No PBB’s, PBBO’s, PBBE’s, Free of Cadmium & Lead
Standard colors: Black, red, blue, yellow, green, white, clear (class 2)
RoHS Compliant





Additional information

Series

Diameter

Type

Color

Min Operating Temperature (°C)

Max Operating Temperature (°C)

Military Specification

Length

Shrink Ratio

Material

Print Certificates

October 3, 2022

Certificate of RoHS Compliance

Qualtek Electronics certifies the following part number Q2-F-QK2-01-6IN-82 is RoHS Compliant 2011/65/EU Ammended to 2015/863/EU

Certificate of REACH Compliance

We, Qualtek Electronics Corporation, declare that the following part number Q2-F-QK2-01-6IN-82 does not contain any SVHC substances listed in ECHA’s website: http://echa.europa.eu/chem_data/authorisation_process/candidate_list_table_en.asp of June 2022 in concentrations greater than 0.1% (w/w), and does not contain any substances as described in Annex XVII.

California Proposition 65 Information Can be found at:

Prop 65 Statement
