880-03/005
Single Fused Screw Mount IEC 60320 C14 Inlet Filter with DPST Switch, and 0.250″ FASTON Terminals, 115VAC/250VAC, 3A
*Custom configurations available
- Description
- Additional information
- DOCUMENTATION
- Stock Check
- Product Compliance
Description

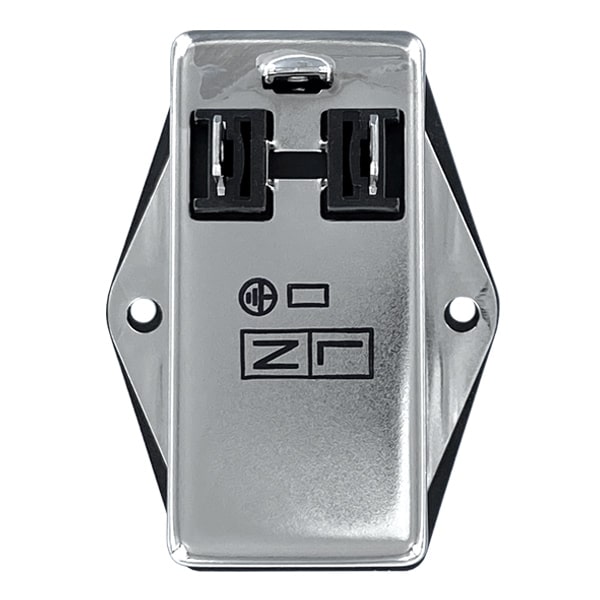

880 Series Single Fused Multi-Function Screw Mount IEC 60320 C14 Inlet Filter with DPST Switch
A multi-function power entry module filter that incorporates an IEC connector, double pole power switch, and optional single or dual fuse holder (5 x 20mm) offering space savings
Voltage Rating: 115/250VAC
Current Rating @115VAC – 3A RMS MAX
Current Rating @250VAC – 3A RMS MAX
Approvals: UL, CSA, VDE
Operating Temperature: -25°C to +85°C
Fuse Holder: Single Fuse holder
Recommended Fuse Size: 5x20mm (Fuses not included)
Dual Pole Single Throw Switch
Additional information
| Series | |
|---|---|
| Voltage | |
| Frequency (Hz) | |
| Current (A) | |
| Leakage Max (115VAC, 60Hz) mA | |
| Leakage Max (250VAC, 50Hz) mA | |
| Hipot Rating (L-G) (VDC) | |
| Hipot Rating (L-L) (VDC) | |
| Min Operating Temp (°C) | |
| Max Operating Temp (°C) | |
| Mounting Style | |
| Input Type | |
| Output Type | |
| Dimensions (in) | |
| Fuse Holder | |
| Recommended Fuse Size | |
| On/Off Power Switch | |
| Voltage Selector | |
| Category |
November 19, 2025
Certificate of RoHS Compliance
Qualtek Electronics certifies the following part number 880-03/005 is RoHS Compliant 2011/65/EU Ammended to 2015/863/EU
Certificate of REACH Compliance
We, Qualtek Electronics Corporation, declare that the following part number 880-03/005 does not contain any SVHC substances listed in ECHA’s website: https://echa.europa.eu/candidate-list-table of June 2025 in concentrations greater than 0.1% (w/w), and does not contain any substances as described in Annex XVII.
EU PoP
Qualtek Electronics Corporation products do not contain any chemicals considered PoP, Persistent Organic Pollutants, Directive (EU) 2019/1021.
EU Biocides
Qualtek Electronics Corporation certifies that bicoides are not used in products or packaging materials and meet the requirements set by the Biocidal Regulation (BPR) EU 528/2012.
We, Qualtek Electronics Corporation, declare that part number 880-03/005 does contain PFAS substances.
| Substance Name or CAS Number | Concentration |
|---|---|
| CAS# 9002-84-0 | 2000 ppm (0.2%w/w) |
California Proposition 65 Information Can be found at:
