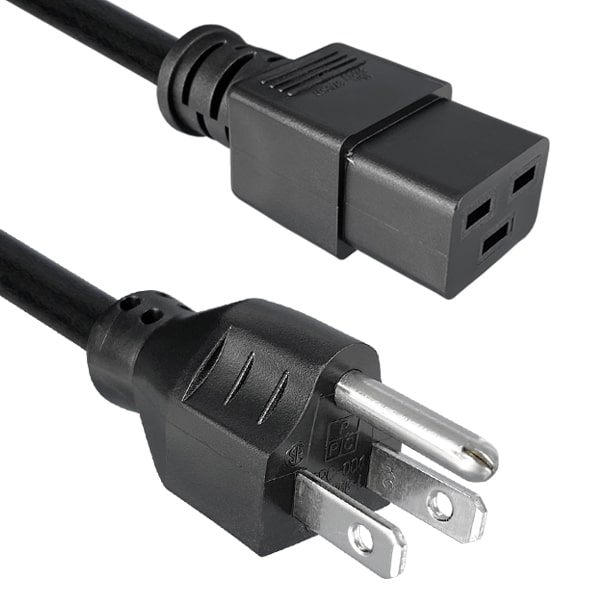

225003-01

NEMA 5-15P to IEC 60320 C19, 14AWG / 3C, SJT, 60C, 98 inches

*Custom configurations available

Description

North American Power Cord
NEMA 5-15P to IEC 60320 C19

Features:

Cordage: SJT, 14AWG / 3C, Unshielded
Temperature Rating: 60C
Rating: 125VAC, 15A
Jacket Color: Black
Plug: NEMA 5-15P
Other End: IEC 60320 C19
Approvals: UL, CSA
Length: 98 inches

Additional information

Length (ft)

Length (in)

Length (m)

Length (mm)

Cordage Type

Cordage AWG

Temperature Rating (°C)

Current Rating

Voltage Rating

Plug Type

Connector Type

Color

Wire Color Code

Shielding

Category

powered by Advanced iFrame free. Get the Pro version on CodeCanyon.

Print Certificates

September 23, 2020

Qualtek Electronics
7610 Jenther Drive
Mentor, OH 44060 USA

Certificate of RoHS Compliance

Qualtek Electronics certifies the following part number 225003-01 is RoHS Compliant 2011/65/EU Ammended to 2015/863/EU

Certificate of REACH Compliance

We, Qualtek Electronics Corporation, declare that the following part number 225003-01 does not contain any SVHC substances listed in ECHA’s website: http://echa.europa.eu/chem_data/authorisation_process/candidate_list_table_en.asp of June 2020 in concentrations greater than 0.1% (w/w), and does not contain any substances as described in Annex XVII.

California Proposition 65 Information Can be found at:

Prop 65 Statement
